24hp Vertical 1"x3-5/32" Shaft, Fuel Pump, Electric Start, Kawasaki Engine
Product details
| Management number | 214785481 | Release Date | 2026/04/12 | List Price | $610.80 | Model Number | 214785481 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

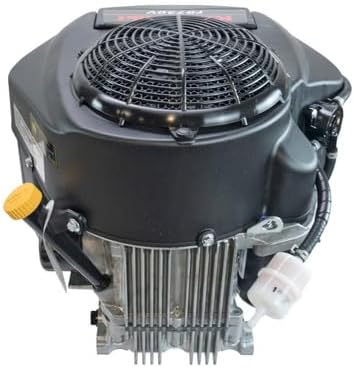

Equip your mower or zero-turn with a strong 24 hp Kawasaki 726cc OHV V-Twin engine. It comes with a 1"–diameter shaft measuring 3-5/32" in length, finished with a 7/16" threaded end and a 1/4" keyway. This vertical-shaft, electric-start model is widely used as a replacement on many residential riding mowers and ZTR machines. Constructed from lightweight, durable aluminum and weighing about 95 lbs, it’s built to match OEM standards. Since Kawasaki produces multiple crankshaft sizes, verify the measurements on your old engine before purchasing. The matching Kawasaki fuel pump delivers steady fuel flow and features a 1" hose-barb inlet along with a 3/8" outlet.
- 24hp Kawasaki 726cc OHV V-Twin Engine
- 1" x 3-5/32" shaft, tapped 7/16" with 1/4" keyway.
- Common replacement engine for consumer riding mowers and z-turns
- Please measure your old engine crankshaft, as Kawasaki makes 1 x 3-5/32, 1-1/8 x 3-5/32, 1-1/8 x 3.94, 1-1/8 x 4-5/16
| Fit Type | Vehicle Specific Fit |
|---|---|
| Gas Type | Gasoline |
| Brand Name | Kawasaki |
| Item Weight | 95 Pounds |
| Manufacturer | Kawasaki |
| Body Material | Aluminum |
| Material Type | Aluminum" or "Steel" or "Engineered Plastic |
| Mounting Type | Vertical |
| Product Grade | New |
| Product Style | Practical |
| Connector Type | BSPP |
| Operation Mode | Electric |
| Item Dimensions | 26 x 26 x 25 inches |
| Specification Met | OE |
| Auto Part Position | Rear |
| Inlet Connection Size | 1 Inches |
| Inlet Connection Type | Hose Barb |
| Outlet Connection Size | 0.38 Inches |
| Outlet Connection Type | Barb |
| Manufacturer Part Number | FR730VJS00S |
| Compatible with Vehicle Type | Riding Mower, Z-Turn |
