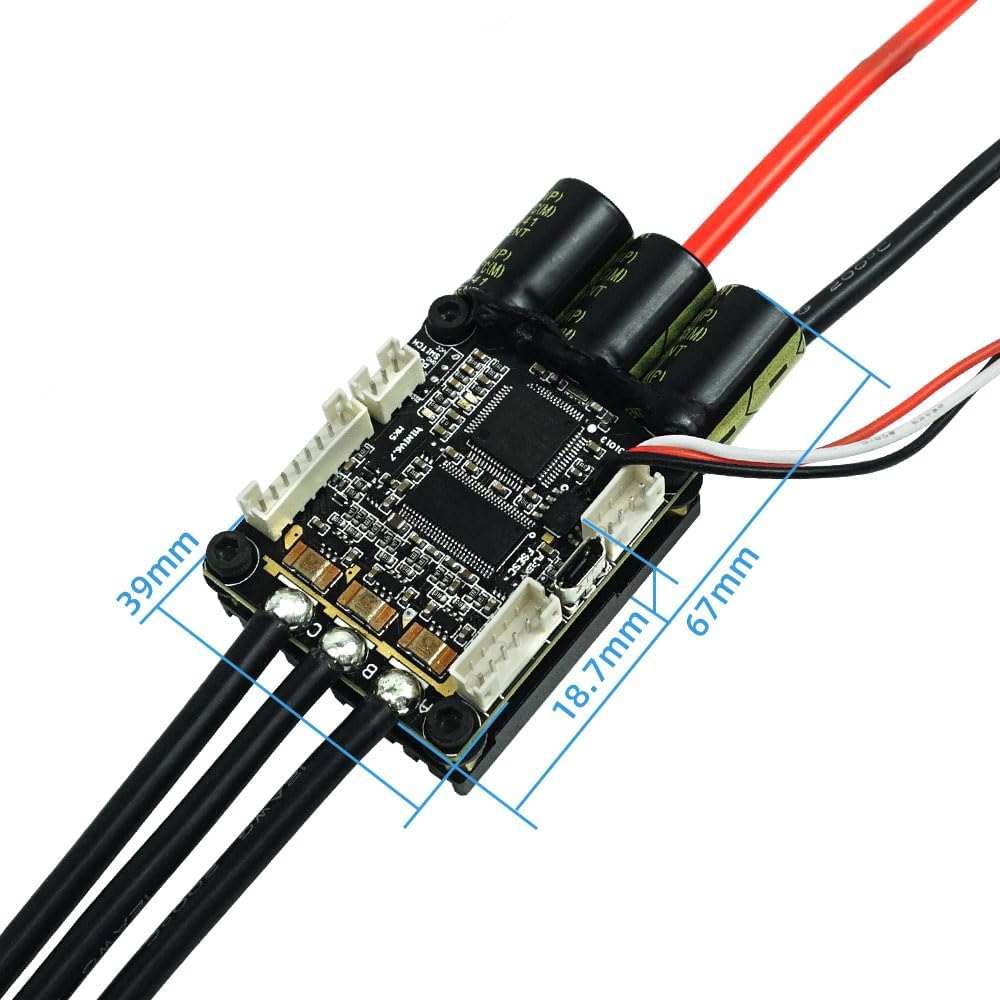

FLIPSKY Mini V6 MK5 with Power Button Base on VESC6.6 with Aluminum Anodized Heat Sink
Product details
| Management number | 214454594 | Release Date | 2026/04/12 | List Price | $32.00 | Model Number | 214454594 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specs:Firmware version: 60Hardware version:vesc 6.4Continuous current: 70A; instantaneous current: 200AVoltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )Control Interface Ports:USB,CAN,UART, SPI, IICSupported Sensors:ABI，HALL，AS5047，AS5048AInput Set Support:PPM, ADC, NRF, UARTModes:DC, BLDC, FOC (sinusoidal)Regenerative capacity: YesBEC: 5V@1AERPM: 150000Programmable: YesMotor wire: 12AWGPower cable:12AWGSize:67x39x18.7mm(Including heatsink)Weight: 130gFeature:Support four control modes: Current/Dutycycle/Speed /Position control mode.Supports sliding power on, automatic power off, and 4 modes of standby function.Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
- More Control Modes:Support four control modes: Current/Dutycycle/Speed /Position control mode.
- Supports sliding power on, automatic power off, and 4 modes of standby function.
- Protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature protection.
- Support the function of balancing car by connecting the IMU module through the IIC interface; support inertial measurement unit modules such as MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160.
- Continuous current: 70A; instantaneous current: 200A;Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )
- Widely applications:e-skateboard,ebike,scooter,robot etc
- Widely applications:e-skateboard,ebike,scooter,robot etc
| Size | 67x39x18.7mm(Including heatsink) |
|---|---|
| Color | Black |
| Material | Aluminum |
| Brand Name | FLIPSKY |
| Model Name | VH-M6S-C-060 |
| Item Weight | 0.13 Kilograms |
| Part Number | Mini V6 MK5 |
| Manufacturer | Flipsky |
| Package Weight | 7.04 ounces |
| Suggested Users | unisex-adult |
| Included Components | With Power Button base on VESC6.6 With Aluminum Anodized Heat Sink |
| Warranty Description | 2m+ |
| Item Package Dimensions L x W x H | 6.3 x 5.12 x 1.57 inches |
