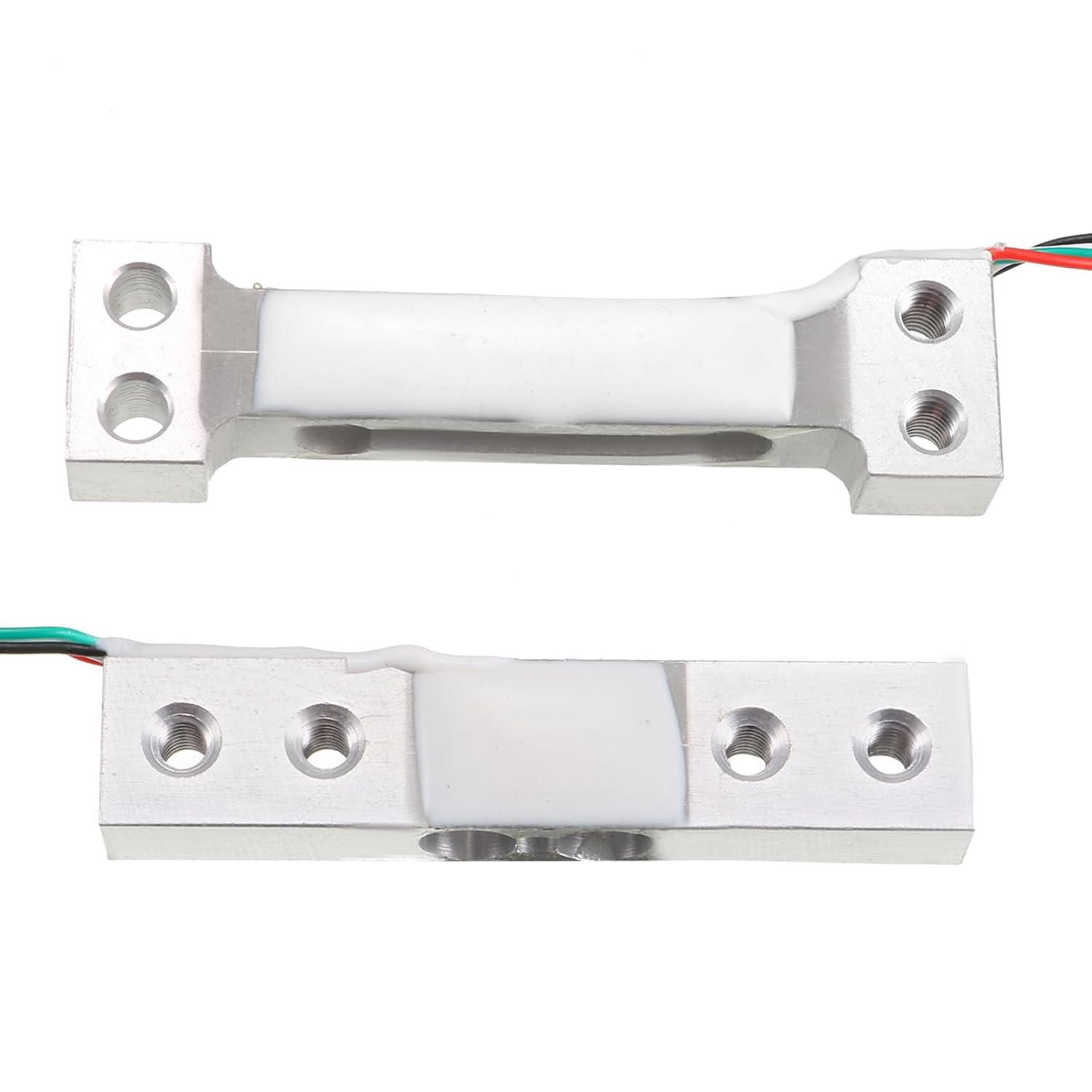

MECCANIXITY Weighing Load Cell 500g 300g Aluminum Weigh Sensor for Electronic Balance Scales Silver Tone Pack of 2

What is this?Silver-tone aluminum wired weighing load cell has high accuracy and simple structure, making it easy to install. Mainly used for tension measurement, fit for electronic scales, balance material scales, and control systems.What will I get?1 x Weighing Load Cell with 500g range, made of aluminum alloy, is in size of 47 x 12 x 6mm (L*W*T).Rated Load: 500gOutput impedance: 1000+/-10 OhmInput impedance: 1000+/-10 OhmError: +/-0.05 F.S.Sensitivity(mV/V): 0.7+/-0.15Wire connection: Red(EXC+), Black(EXC-) ,Green(SEN+), White(SEN-)Hole Thread: M3Wire Length: 110mm1 x Weighing Load Cell with 300g range, made of aluminum alloy, is in size of 45 x 9.3 x 6mm (L*W*T).Rated Load: 300gOutput impedance: 1000+/-10 OhmInput impedance: 1000+/-10 OhmError: +/-0.05 F.S.Sensitivity(mV/V): 0.7+/-0.15Wire connection: Red(EXC+), Black(EXC-) ,Green(SEN+), White(SEN-)Hole Thread: M3Wire Length: 100mmAre there any advantages of the product?The material is aluminum alloy, and the surface is anodized. Make it more lustrous, durable, and useful.The product is protected by silica gel, good for withstanding corrosion, moisture, and aging.How to use it?When using this wire-connected load cell, please adjust the mounting plane of the base to be level with a level.Please notice the rated load of the sensor and the range selection of the load cell, for better use.What should I notice?Please ensure that do not press the white plastic fitting part directly, for protecting the sensor.Please notice the rated load of the sensor before usage.

• Silver-tone aluminum wired weighing load cell has high accuracy and simple structure, making it easy to install. Mainly used for tension measurement, fit for electronic scales, balance material scales, and control systems.
• ITEM1 Rated Load: 500g, Output impedance: 1000+/-10 Ohm, Input impedance: 1000+/-10 Ohm, Error: +/-0.05 F.S. Sensitivity(mV/V): 0.7+/-0.15, Wire connection: Red(EXC+), Black(EXC-) ,Green(SEN+), White(SEN-), Hole Thread: M3, Wire Length: 110mm, Load Cell Size: 47 x 12 x 6mm (L*W*T). ITEM2 Rated Load: 300g, Output impedance: 1000+/-10 Ohm, Input impedance: 1000+/-10 Ohm, Error: +/-0.05 F.S. Sensitivity(mV/V): 0.7+/-0.15, Hole Thread: M3, Wire Length: 100mm, Load Cell Size: 45 x 9.3 x 6mm (L*W*T)
• The material is aluminum alloy, and the surface is anodized. Make it more lustrous, durable, and useful. The product is protected by silica gel, good for withstanding corrosion, moisture, and aging.
• When using this wire-connected load cell, please adjust the mounting plane of the base to be level with a level. Please notice the rated load of the sensor and the range selection of the load cell, for better use.
• Please ensure that do not press the white plastic fitting part directly, for protecting the sensor. Please notice the rated load of the sensor before usage.
